How to Fix P0102: Diagnose a Low MAF Signal Before Replacing Parts
P0102 means the engine computer received a mass air flow sensor signal below its expected range. Fix it by checking the air filter, intake duct, MAF connector, wiring, power supply, ground, and live scan data before replacing the sensor. A dirty sensor can cause P0102, but damaged wiring or an intake fault can trigger the same code.
Your check-engine light came on, the car feels weak, or it stalls at idle. Then your scanner shows P0102. The easy answer sounds simple: replace the MAF sensor.
That is often the expensive wrong move. P0102 points to a low mass air flow sensor signal, not a guaranteed failed sensor. This takes about 9 minutes to read and gives you a safer order for finding the real fault.
Do not replace the MAF sensor until the air path and electrical circuit pass inspection. P0102 can come from contamination, a blocked air filter, a loose connector, a broken wire, poor power supply, or a sensor that no longer reports airflow correctly.
What P0102 Means for Your Engine
P0102 is a generic OBD-II code for Mass or Volume Air Flow “A” Circuit Low Input. The engine control module sees a MAF signal lower than the value it expects for engine speed, throttle position, load, and intake conditions.
The MAF sensor sits in the intake tract, usually after the air filter box. It measures incoming air so the engine computer can calculate fuel delivery. A low or missing airflow signal can create rough idle, hesitation, hard starting, stalling, reduced power, and poor fuel economy.
HELLA explains that air-mass sensors measure intake air mass and provide a key input for fuel calculation. Its diagnostic process starts with connector condition, sensor damage, voltage supply, wiring continuity, and electronic testing. HELLA’s air-mass sensor troubleshooting guide follows this same diagnostic order. :contentReference[oaicite:0]{index=0}
| What You See | What It Can Mean | Best First Check |
|---|---|---|
| P0102 with no driveability issue | Intermittent connector, wiring, or signal fault | Check stored freeze-frame data and connector fit |
| P0102 with rough idle or stalling | Low airflow reading, intake restriction, or circuit issue | Inspect filter, intake hose, MAF sensor, and wiring |
| P0102 plus intake temperature codes | Shared connector, harness, fuse, or sensor assembly issue | Check wiring diagram and shared power supply |
| P0102 after air-filter service | Loose air duct, unplugged sensor, damaged connector | Inspect everything touched during the service |
The table shows why P0102 needs diagnosis, not guessing. The code reports a failed airflow signal test. It does not identify which part caused that failure.
Start With the Intake Air Path

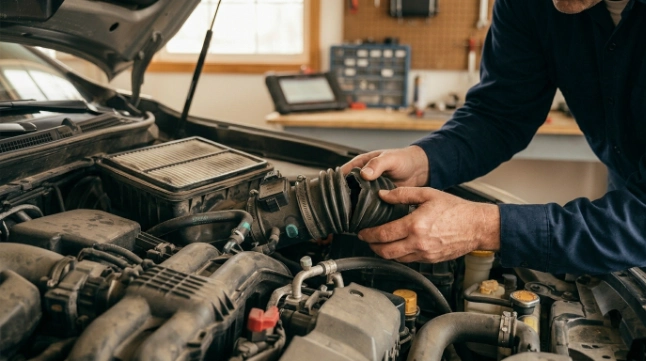

Start with the air filter box, filter element, intake tube, clamps, and MAF sensor housing. This takes less than two minutes and finds faults that no scan tool can repair.
Open the air box and check whether the filter is crushed, heavily blocked, wet, installed backward, or covered in debris. Then inspect the intake pipe from the air box to the throttle body for splits, loose clamps, collapsed sections, and disconnected vacuum lines.
Pay close attention to the flexible intake boot. Cracks often open only when the engine moves under acceleration. Bend the boot gently by hand and inspect every rib, underside, and hose connection.
Do not touch the MAF sensing element with fingers, cloth, a brush, or compressed air. The sensing wire or film can bend, crack, or lose calibration.
A restricted air filter can reduce airflow. A dirty filter can also allow contamination when it no longer seals correctly. Mitsubishi issued guidance for certain vehicles with P0102 that directs technicians to inspect the air filter because airborne dirt can pass the filter and damage the MAF sensor. :contentReference[oaicite:1]{index=1}
Check the air path before cleaning or replacing any sensor. A new MAF sensor will not solve a split intake boot or a loose air-box lid.
Inspect the MAF Sensor Connector and Wiring
Next, inspect the MAF electrical connector. A P0102 code often appears when the sensor has power but the signal wire cannot reach the engine computer correctly.
Unplug the connector with the ignition off. Check for green corrosion, spread terminals, bent pins, moisture, damaged locking tabs, oil contamination, and wires pulled tight near the connector.
Follow the harness several inches in both directions. Look for rubbing against brackets, sharp metal, exhaust heat, moving pulleys, or previous repair tape. A wire can break inside the insulation while the outside still looks normal.
- Check that the connector clicks firmly into place.
- Inspect for broken insulation near the sensor plug.
- Look for rodent damage in the intake-side harness.
- Check shared fuses when related sensor codes appear.
- Repair corroded terminals instead of forcing them tighter.
- Use the correct wiring diagram for your exact engine.
Factory diagnostic routines confirm this order. Mitsubishi’s P0102 procedure checks the MAF connector, battery-voltage supply, ECM connector, signal wire continuity, and sensor output before calling for sensor replacement. :contentReference[oaicite:2]{index=2}
What most people do not think to ask is this: does your vehicle have a shared sensor circuit? Some MAF assemblies also include intake-air temperature sensing. A shared power, ground, or harness fault can create several codes at once.
Check Power, Ground, and Signal Before Replacing the MAF
A healthy MAF sensor needs stable power, a solid ground, and a clean signal path to the engine control module. Losing any one of these can trigger P0102.
Use your vehicle-specific repair information for connector pin numbers and expected voltage. Do not use a random internet pinout because wire colors, sensor type, and terminal locations change by engine and model year.
With the correct wiring diagram, check the sensor’s power feed and ground. Then test continuity between the MAF signal wire and the engine control module. A high-resistance connection, open circuit, or short to ground can pull the signal low.
Do not rely on one universal MAF voltage number. Factory values vary by vehicle. For example, Mitsubishi lists a model-specific idle MAF voltage range and expects the signal to rise as engine speed rises. That proves why live data and specifications must match your exact vehicle. :contentReference[oaicite:3]{index=3}
Record freeze-frame data before clearing P0102. Note engine RPM, coolant temperature, throttle position, vehicle speed, and other stored codes. Those details show when the engine computer detected the low MAF signal.
Some P0102 cases have no direct MAF sensor failure at all. A General Motors technical bulletin describes an application where P0102 appeared with other intake-sensor codes because of a short circuit in a different section of the wiring harness. The NHTSA-hosted GM service bulletin shows why circuit inspection matters before parts replacement. :contentReference[oaicite:4]{index=4}
Use Live Data to Confirm the Fault
Live scanner data helps separate a true low-airflow reading from a wiring or sensor fault. Watch the MAF parameter at warm idle, then raise engine speed smoothly and confirm that the reading changes in a logical direction.
A MAF reading that stays near zero, freezes, jumps sharply, or fails to respond as RPM rises points toward a sensor circuit or sensor failure. A reading that rises normally but stays outside the expected range can point toward an intake restriction, duct issue, engine breathing problem, or software-specific condition.
Compare MAF data with RPM, throttle position, intake-air temperature, manifold pressure, fuel trims, and any related codes. This prevents one bad number from sending you toward the wrong repair.
You may think a vacuum leak automatically causes P0102. It does not. A downstream leak often creates unmetered air and lean fuel-trim codes, while P0102 focuses on a low MAF circuit signal. The exact code logic depends on the vehicle manufacturer.
Use live data to prove the sensor response before buying a replacement. This is where most unnecessary MAF purchases can be avoided.
Clean the MAF Sensor Only When It Makes Sense
Clean the MAF sensor only when it shows light contamination, the sensor element has no damage, and your vehicle’s service guidance permits cleaning. Use only a product labeled for mass air flow sensors.
Remove the sensor carefully. Spray the sensing element without touching it. Let the cleaner evaporate completely before reinstalling the sensor and reconnecting the electrical plug.
Do not use brake cleaner, carburetor cleaner, throttle-body cleaner, gasoline, shop towels, or compressed air. Those products can leave residue, strip protective coatings, or damage the sensitive measuring element.
Cleaning works when contamination blocks accurate airflow measurement. It will not repair a broken sensing element, failed electronics, corroded pins, missing power, damaged wiring, or a cracked intake tube.
When Cleaning Is the Right Repair
- The MAF sensor has visible dust or oil film.
- The connector and wiring pass inspection.
- The air filter or intake seal caused contamination.
- Live data improves after cleaning and remains stable.
When Replacement Is the Right Repair
- The sensing element is cracked, bent, or detached.
- The sensor signal stays low after circuit tests pass.
- The sensor fails the exact vehicle-specific test.
- P0102 returns after the intake system and wiring are repaired.
Choose a sensor that matches the exact engine and original sensor calibration. A low-quality or incorrect MAF sensor can produce unstable readings even when it fits the housing.
What Most People Get Wrong About P0102
Wrong belief: P0102 always means the MAF sensor is bad. The code means the engine computer saw a low signal. Wiring, power, ground, connector condition, intake restriction, and sensor contamination can cause the same result.
Wrong belief: clearing the code fixes the issue. Clearing P0102 only removes the stored fault. The engine computer will run its monitor again, and the code will return when the original problem remains.
Wrong belief: a dirty MAF sensor needs aggressive cleaning. The sensing element is delicate. Touching it or using the wrong cleaner can convert a cleanable sensor into a failed sensor.
Wrong belief: one MAF reading fits every engine. A 1.5-liter four-cylinder, a turbocharged engine, and a large V8 use different airflow expectations. Always compare data against the correct repair information for your vehicle.
Choose the Correct Repair for Your P0102 Result
Use the result of your inspection to select one repair. Do not combine several parts changes at once because you lose the evidence showing what fixed the fault.
| If You Find This | Do This |
|---|---|
| Dirty or blocked air filter | Replace the filter and verify the air-box seal. |

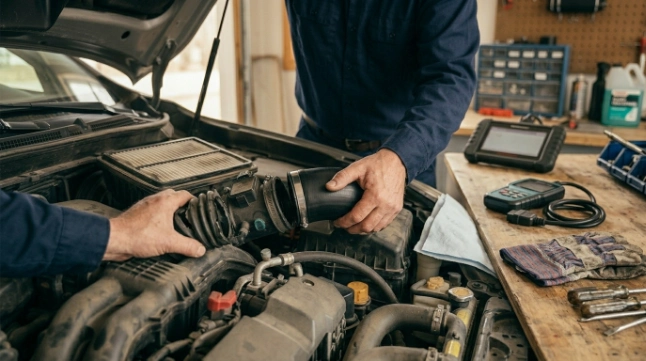

| Split intake hose or loose clamp | Repair or replace the damaged intake component. |
| Loose, wet, corroded, or damaged connector | Repair terminals or replace the connector pigtail. |
| Open, shorted, or high-resistance wiring | Repair the harness using the correct wiring procedure. |
| Contaminated but undamaged MAF element | Clean it with dedicated MAF sensor cleaner. |
| Correct power, ground, wiring, and low sensor output | Replace the MAF sensor with the correct calibrated part. |
The repair is complete only after you clear the code, start the engine, confirm stable idle, check live MAF response, and complete a normal drive cycle. Scan again after the drive to confirm P0102 stayed gone.
One repair, one verification drive, one rescan. That process gives you a reliable answer instead of a temporary warning-light reset.
When P0102 Returns After a Repair
If P0102 returns after cleaning or replacing the MAF sensor, stop replacing parts. Return to the data and inspect what the first repair did not prove.
Check for a damaged harness farther from the sensor, a weak ground under load, a shared fuse issue, improper connector terminal tension, a poor-quality replacement sensor, or a vehicle-specific service bulletin. Recheck all related codes because they often point to the shared fault.
AutoZone, Haynes, and CarParts all identify the common P0102 pattern: inspect the sensor, air filter, intake system, wiring, and connector before selecting the repair. Their guides cover the basics, but the strongest diagnostic move is matching live data and circuit tests to the exact engine. :contentReference[oaicite:5]{index=5}
Do this next: scan for all stored and pending codes, then inspect the MAF connector and intake tube before you buy a single part.
P0102 is a low MAF signal code, not automatic proof that the MAF sensor failed.
The most reliable repair sequence checks airflow, connector condition, power, ground, wiring, and live data before sensor replacement.
Open your scanner now, record every stored code and freeze-frame value, then inspect the MAF connector for damage or corrosion.
Frequently Asked Questions
Can I drive with a P0102 code?
You can sometimes drive a short distance with P0102, but routine driving is not a good plan. Low MAF readings can cause stalling, weak acceleration, rough running, and poor fuel control. Stop driving when the engine stalls, loses major power, smells strongly of fuel, or flashes the check-engine light.
Will disconnecting the battery fix P0102?
No. Disconnecting the battery can clear stored codes and reset some learned values, but it does not repair the low MAF signal. The engine control module will run its test again and store P0102 when the air-flow or circuit fault remains.
Can a dirty air filter cause P0102?
Yes. A blocked air filter can reduce airflow, while a damaged or badly sealed filter can allow dust and oil contamination onto the MAF sensor. Inspect both the filter element and its sealing surface, then check the intake housing for debris before replacing the sensor.
Should I clean or replace my MAF sensor for P0102?
Clean the MAF sensor when it has light contamination, no physical damage, and the wiring passes inspection. Replace it when live data stays low after power, ground, connector, wiring, and intake tests confirm the rest of the system works correctly.
Can P0102 cause poor fuel economy?
Yes. The engine computer uses the MAF signal to estimate incoming air and calculate fuel delivery. When that signal stays low or unreliable, the fuel mixture can move away from the target range, causing weak performance, unstable idle, and higher fuel use.
