How to Fix P0505: Diagnose and Repair an Idle Control System Malfunction
To fix P0505, first use an OBD2 scanner to check for related trouble codes and live idle data. Then inspect the intake system for air leaks, check the throttle body or idle air control system, inspect electrical connections, and follow the vehicle manufacturer’s diagnostic or relearn procedure before replacing parts. An OBD-II trouble code reference can help you understand the codes stored with P0505.
Quick P0505 troubleshooting steps
- Scan all codes: Related airflow, throttle, sensor, or voltage codes may point toward the real cause.
- Check for air leaks: Inspect intake hoses, vacuum lines, clamps, and obvious damaged connections.
- Inspect the throttle: Carbon buildup or a sticking idle-air passage can interfere with idle control.
- Check wiring: Loose plugs, corrosion, damaged wiring, or poor grounds can interrupt idle-control commands.
- Verify before replacing: P0505 identifies an idle-control system problem, not one guaranteed failed component.
Before clearing the code
- Record stored, pending, and freeze-frame data so you don’t erase useful diagnostic information.
I’ve seen drivers treat P0505 as an automatic order for a new idle air control valve. That’s risky because the same code can appear when the actual problem is an air leak, dirty throttle body, wiring fault, or electronic throttle-control issue.
As of 2026, the correct repair depends heavily on how your particular vehicle controls idle. This guide walks through the diagnosis in the order I’d use before spending money on parts.
In This Guide
What Does P0505 Mean?
P0505 is an OBD-II diagnostic trouble code indicating an idle control system malfunction. The engine computer has detected that idle control isn’t operating as expected.
The key word is “system.” P0505 doesn’t prove that your idle air control valve has failed.
What is the idle control system?
An idle control system is the group of components the engine computer uses to maintain stable engine speed when your foot is off the accelerator.
Older vehicles commonly use a dedicated idle air control valve, or IAC valve. It meters air around the throttle plate so the engine can keep running at idle.
Many newer vehicles use an electronic throttle body instead. The engine computer adjusts the throttle plate electronically rather than relying on a separate IAC valve.
- PCM or ECM: The engine computer that monitors and commands idle operation.
- IAC valve: A separate idle-air actuator found on many older throttle systems.
- Electronic throttle body: A motor-operated throttle assembly used on many newer vehicles.
- Intake system: Hoses, gaskets, ducts, and passages that control incoming air.
- Sensors: Inputs that help the computer calculate the correct idle conditions.
That difference changes the repair. Looking for an IAC valve on a vehicle that controls idle through its electronic throttle body sends the diagnosis in the wrong direction.
One thing I regularly emphasize when using scan tools around locksmith and immobilizer work is simple: a trouble code is a starting point, not a parts order.

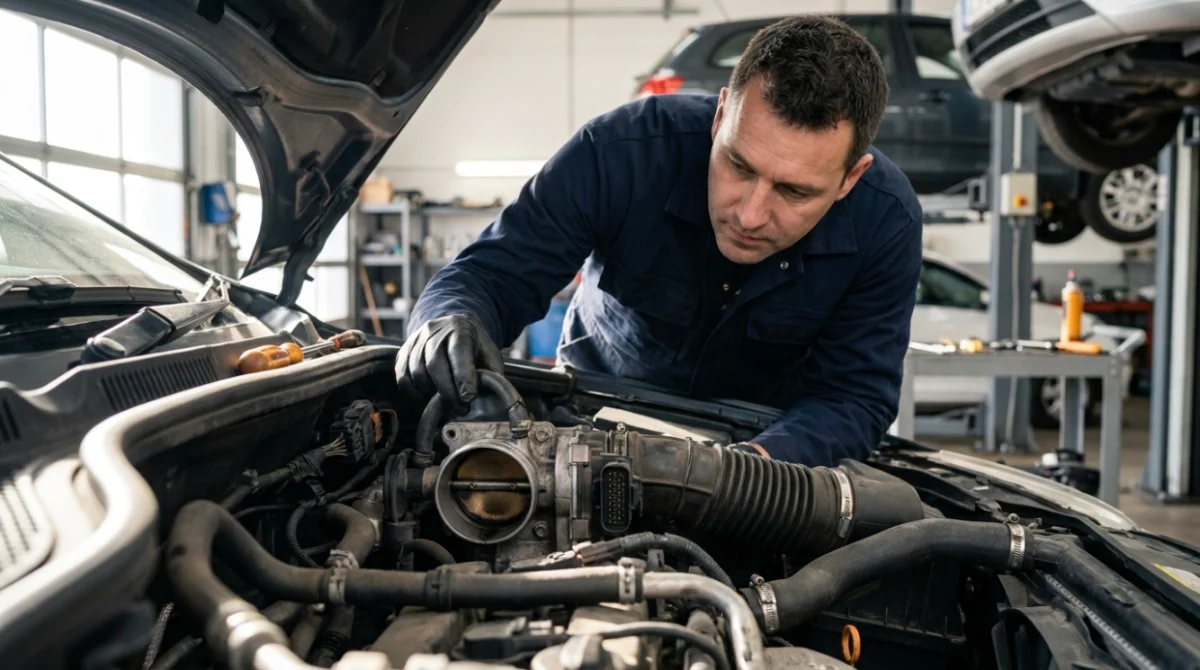

What Causes the P0505 Code?
P0505 can be caused by mechanical, airflow, electrical, or electronic problems. Start with the causes that can affect the entire idle-control system.
Common causes of P0505
- Vacuum or intake leak: Unmetered air can raise or destabilize idle speed beyond what the computer can correct.
- Dirty throttle body: Deposits around the throttle plate can reduce predictable airflow at idle.
- Dirty IAC passages: Carbon buildup can restrict or interfere with bypass airflow on vehicles using an IAC valve.
- Sticking IAC valve: A valve that cannot respond correctly may cause high, low, or hunting idle.
- IAC electrical fault: Damaged wiring, a poor connection, or an internal actuator problem can stop commanded movement.
- Electronic throttle problem: Vehicles without a separate IAC may develop faults within the throttle-control system.
- Connector or ground problem: Corrosion, loose terminals, or damaged wiring can create intermittent control problems.
- Incorrect idle relearn: Some vehicles need a manufacturer-specific adaptation after throttle cleaning, battery disconnection, or component work.
What symptoms usually appear with P0505?
The symptoms depend on what has failed. Some vehicles only illuminate the Check Engine Light, while others become difficult to keep running at a stop.
- Rough or uneven idle
- Idle speed that rises and falls
- Idle that stays unusually high
- Idle that drops too low
- Engine stalling when stopping
- Difficult starting
- Check Engine Light
- Idle changes when accessories or engine loads are applied
Don’t diagnose the vehicle from one symptom alone. A vacuum leak, ignition problem, airflow issue, or throttle fault can create overlapping complaints.
How Do You Diagnose P0505?
Diagnose P0505 by checking the complete system before condemning the actuator. Your OBD2 scanner should come first because related codes and freeze-frame information can change the direction of the repair.
1. Read every stored and pending trouble code
Don’t stop when the scanner displays P0505. Write down every stored, pending, and permanent code the tool can access.
AAA notes that OBD-II codes provide clues technicians use to identify potential causes. That distinction matters because several codes appearing together can be more useful than P0505 alone.
2. Save freeze-frame information
Freeze-frame data captures operating conditions when the computer detected a fault. Depending on your scanner and vehicle, it may show engine speed, temperature, throttle information, load, and related parameters.
Record that information before clearing anything. Once it’s gone, reproducing the original conditions may be difficult.
3. Inspect the intake system
Look for obvious sources of unwanted air entering the engine. A leak can force the idle-control system outside its normal correction range.
- Disconnected vacuum hoses
- Split or hardened hoses
- Loose intake clamps
- Cracked intake ducting
- Damaged connectors near the throttle body
- Signs of disturbed gaskets after recent repair work
4. Look at live data
A more capable OBD2 scanner can show whether actual idle behavior matches what you feel from the driver’s seat. Available parameters vary by manufacturer.
| Diagnostic check | What you’re looking for | What it may suggest |
|---|---|---|
| Engine RPM | Stable, high, low, or fluctuating idle | Confirms the idle complaint and helps reproduce it |
| Throttle data | Unexpected throttle position or response | May justify throttle-system testing |
| Fuel-trim data | Abnormal corrections, interpreted with service information | Can support further investigation of unwanted air or fueling issues |
| IAC command or position | Commanded changes, if the vehicle exposes this data | Helps compare computer commands with engine response |
Not every scanner shows every parameter. Don’t treat a missing PID as proof that the component isn’t present or isn’t working.
Technician’s note: never apply a universal resistance value, voltage specification, or actuator command to every vehicle. Compare your readings with the service information for the exact year, engine, and throttle system.
How Do You Fix P0505?
The correct P0505 fix is the repair that addresses the diagnosed cause. Avoid replacing the IAC valve or throttle body simply because those parts appear in a search result.
Fix damaged intake or vacuum connections
If you find a split hose, loose duct, disconnected line, or another confirmed air leak, repair that problem first. Then retest the idle system.
A leak can make a perfectly functional idle actuator appear unable to control RPM.
Clean a dirty throttle body or IAC passage when appropriate
Deposits can interfere with airflow around the throttle plate or through dedicated idle passages. Cleaning may help when contamination is confirmed and the manufacturer permits that service.
Use products and procedures appropriate for the vehicle. Some electronic throttle bodies shouldn’t be forced or manipulated the way older mechanical units can be.
Repair wiring or connector faults
If inspection or electrical testing identifies damaged wiring, corrosion, poor terminal tension, or a bad connection, correct that fault before replacing the actuator.
This is where visual inspection saves money. I’ve seen electronic problems blamed on expensive components when the more useful clue was sitting at the connector.
Replace the failed component only after testing
A confirmed failed IAC valve may require replacement on vehicles equipped with one. An electronically controlled throttle system may require a different repair path.
Component access and calibration requirements vary widely. Some vehicles are simple, while others need higher-level diagnostic equipment.
Perform the required idle or throttle relearn
Some vehicles require a relearn after throttle-body service, actuator replacement, battery disconnection, or other work. The exact process is manufacturer-specific.
Don’t copy a button sequence or pedal routine from a different model. Use the factory procedure for your exact vehicle.
For example, Nissan provides factory-authorized service information for supported Nissan vehicles. Other manufacturers provide their own technical information systems.
Technician’s note: if a relearn requires bidirectional controls or manufacturer-level functions your scanner doesn’t support, use a qualified repair facility rather than guessing at a sequence.
Clear the code and verify the repair
After completing the confirmed repair, clear the code if appropriate and operate the vehicle under the conditions needed to verify stable idle. Recheck for stored and pending codes afterward.
If P0505 returns, continue diagnosis. Repeatedly clearing it without repairing the cause only hides useful information.
Can You Drive With P0505?
You may be able to drive with P0505 if the engine runs normally, but unstable idle or stalling can turn the problem into a safety concern. Treat severe symptoms more seriously than the code number alone.
- Stable idle: Arrange diagnosis soon and watch for worsening symptoms.
- Frequent stalling: Avoid normal driving until the cause is identified.
- Surging or unpredictable RPM: Have the vehicle inspected before continued use.
- Flashing Check Engine Light: Treat it as an urgent warning and move to a safe location.
AAA advises drivers to seek professional evaluation for a Check Engine Light and treats a flashing light as requiring immediate attention. You can review its Check Engine Light guidance for broader warning-light information.
It’s also worth checking whether your exact vehicle has an applicable recall or manufacturer communication. The NHTSA recall lookup lets owners search by VIN, license plate, or vehicle information.
P0505 Frequently Asked Questions
Does P0505 mean my idle air control valve is bad?
No. P0505 indicates an idle-control system malfunction, not a guaranteed failed IAC valve. The cause can include an air leak, contamination, wiring problems, an IAC fault, electronic throttle issues, or another condition affecting idle control.
Can a vacuum leak cause P0505?
Yes, an intake or vacuum leak can interfere with idle control because unwanted air changes how the engine runs with the throttle closed. Check hoses, intake connections, and other likely leak points before automatically replacing an idle-control component.
Can a dirty throttle body cause P0505?
It can contribute to an idle-control problem on some vehicles. Deposits can change airflow around the throttle plate, while older systems may also develop contamination in separate IAC passages. Cleaning should follow the manufacturer’s recommended procedure.
Can I clean the IAC valve instead of replacing it?
Sometimes, but it depends on the IAC design and the cause of the fault. Cleaning may help with accessible carbon contamination, but it won’t repair a failed motor, damaged wiring, worn internal parts, or an unrelated vacuum leak.
Will clearing P0505 fix the problem?
No. Clearing the code only removes diagnostic information from memory when the vehicle allows it. If the underlying fault remains, P0505 can return after the computer detects the malfunction again.
Do I need an expensive OBD2 scanner to diagnose P0505?
A basic code reader can confirm the code, but live data makes diagnosis more useful. A scanner with RPM, throttle, fuel-trim, and manufacturer-specific data may help you separate an airflow problem from an actuator or electronic-control problem.
Does P0505 have the same repair on every car?
No. The code is standardized, but the idle-control hardware and diagnostic procedures vary. Always identify your vehicle’s year, make, model, engine, and throttle system before following component tests or relearn procedures.
Final Takeaway
The best way to fix P0505 is to diagnose the idle-control system instead of guessing which part failed. Start with all stored codes, freeze-frame data, intake inspection, live scanner data, and the correct service information.
Then repair the confirmed cause, complete any required relearn, and verify that the code stays gone. If the engine stalls, surges, or requires diagnostic functions your scanner doesn’t provide, have a qualified technician finish the testing.
