P0135 Causes: Why Bank 1 Sensor 1 Heater Fails
P0135 causes usually include a failed upstream oxygen sensor heater, damaged wiring, a blown fuse, corroded connector pins, poor ground, or high resistance in the Bank 1 Sensor 1 heater circuit. The code points to the heater circuit, not always the oxygen sensor tip itself.
- P0135 means O2 heater circuit malfunction.
- Bank 1 Sensor 1 is the upstream sensor.
- Wiring issues can mimic sensor failure.
- Test power, ground, resistance, and fuses first.
Your check engine light is on, and the scan tool shows P0135. That feels simple at first because many parts stores call it an oxygen sensor code.
The tricky part is this: P0135 does not always mean the oxygen sensor is bad. It means the engine control module found a fault in the heated oxygen sensor circuit for Bank 1 Sensor 1. AutoZone describes P0135 as a generic powertrain code linked to the front oxygen sensor heater circuit, and Edmunds notes that the heater helps the sensor work faster during cold starts. :contentReference[oaicite:1]{index=1}
This takes about 9 minutes to read. By the end, you will know the likely causes, what to check first, and why replacing the sensor without testing can waste money.
1. P0135 Code Meaning In Plain English
P0135 means the powertrain control module detected a fault in the oxygen sensor heater circuit for Bank 1 Sensor 1. Bank 1 is the side of the engine with cylinder 1, and Sensor 1 sits before the catalytic converter.
The upstream oxygen sensor needs heat to read exhaust oxygen correctly. The exhaust warms the sensor after driving, but the built-in heater makes the sensor reach working temperature faster after a cold start.
Think of P0135 as an electrical heater problem first, not a fuel mixture problem first.
That matters because the oxygen sensor has two jobs. One part reads exhaust oxygen. The other part heats the sensor. P0135 focuses on the heater side.
California OBD II regulation text says vehicles with heated oxygen sensors must monitor the heater for proper performance. That is why the check engine light can come on even before you feel a drivability problem. :contentReference[oaicite:2]{index=2}
Now that the code meaning is clear, the next step is knowing which failure causes it most often.
2. Common P0135 Causes Drivers Should Check First

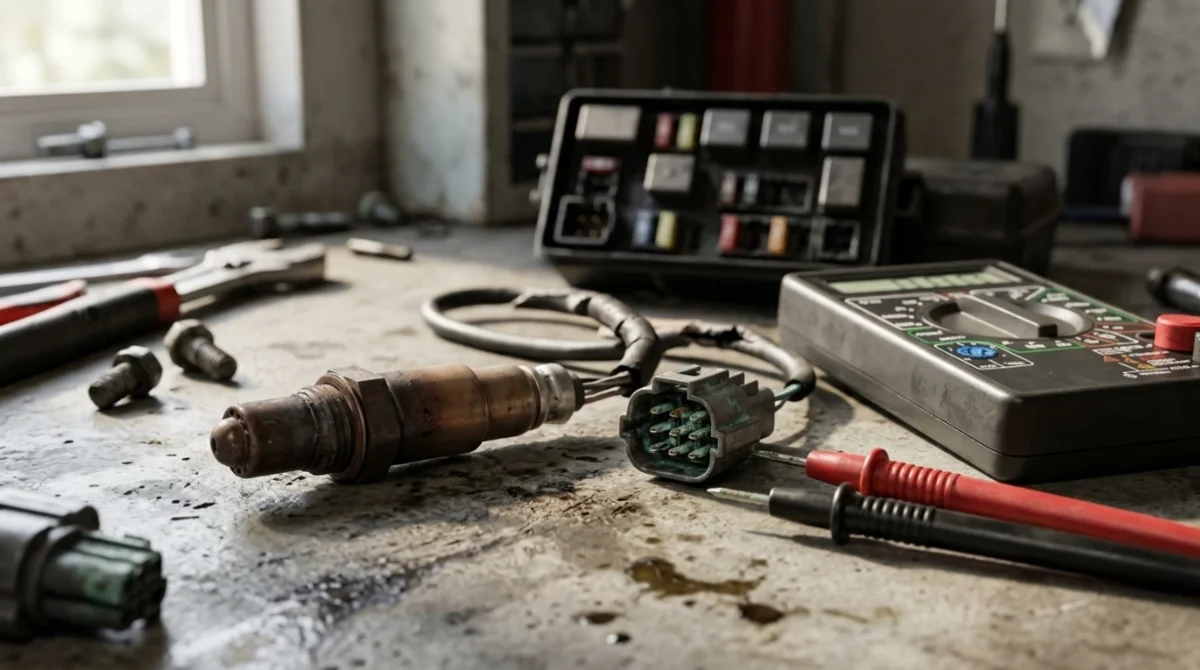

The most common P0135 causes are heater element failure, open wiring, shorted wiring, corroded connector pins, blown fuse, and poor ground. The sensor is common, but the circuit around the sensor deserves the same attention.
AutoZone lists high resistance, internal shorts, open heater elements, and harness problems as common P0135 causes. Edmunds also recommends checking wiring, connectors, sensor resistance, and heater voltage during diagnosis. :contentReference[oaicite:3]{index=3}
| Cause | Why It Triggers P0135 | What You Notice |
|---|---|---|
| Failed heater element | The sensor heater no longer draws correct current. | Check engine light after cold start. |
| Broken wiring | Power or ground cannot reach the heater. | Code returns after sensor replacement. |
| Blown fuse | The heater circuit loses voltage supply. | Multiple heater codes can appear. |
| Corroded connector | Resistance rises at the sensor plug. | Intermittent code after rain or washing. |
| PCM control fault | The module cannot control heater current. | Rare after all circuit tests pass. |
The key conclusion is simple. A P0135 fix starts with the heater circuit, not a blind parts swap.
3. Why The O2 Sensor Heater Matters
The oxygen sensor heater matters because the engine needs fast exhaust feedback after startup. Without heat, the sensor reacts slowly, and the engine can stay in open loop longer.
Open loop means the engine runs from preset fuel tables instead of live oxygen sensor feedback. During this period, the air-fuel ratio can run richer than normal, which wastes fuel and increases emissions.
Edmunds explains that a heater problem can affect fuel control during cold starts and can raise emissions. Oregon DEQ also explains that OBD monitors emission control systems and turns on a warning light when the onboard computer detects an emission problem. :contentReference[oaicite:4]{index=4}
Do not ignore P0135 for weeks if fuel economy drops or the engine runs rough after startup.
You can still drive many vehicles with P0135 for a short time. The risk grows when the engine runs rich, fouls the sensor, or stresses the catalytic converter.
Next, look at the exact part of the circuit that creates the fault.
4. Bank 1 Sensor 1 Heater Circuit Parts
The Bank 1 Sensor 1 heater circuit includes the upstream oxygen sensor heater, power feed, ground path, connector, fuse, relay, and PCM control side. A fault in any one part can set P0135.
Most four-wire oxygen sensors use two wires for the sensor signal and two wires for the heater. Wideband air-fuel sensors can use more wires, but the same idea applies: the heater has its own electrical path.
- Heater element: warms the oxygen sensor after startup.
- Power wire: supplies battery voltage or controlled voltage.
- Ground wire: completes the heater circuit.
- Connector pins: carry current through the plug.
- Fuse or relay: protects or supplies the heater circuit.
- PCM driver: monitors or controls heater current.
NYVIP says the PCM can turn the heater strip circuit on and off while looking for the expected current change. Some OBD II systems monitor heater current continuously, and each oxygen sensor heater circuit is checked on its own. :contentReference[oaicite:5]{index=5}
That explains why one sensor heater code can appear while other oxygen sensors still work fine.
5. What Most People Get Wrong About P0135 Causes
Most people get P0135 wrong because they treat it as a simple oxygen sensor replacement code. That shortcut works sometimes, but it fails when the real problem is wiring, a fuse, or a connector.
Wrong Belief 1: P0135 Always Means The O2 Sensor Is Bad
P0135 often involves the oxygen sensor heater, but the sensor is not the only possible fault. The PCM sets the code when it sees the wrong heater circuit behavior.
A broken power feed, poor ground, or melted harness can create the same result. This is why the code can return after a new sensor.
Wrong Belief 2: The Catalytic Converter Causes P0135
A bad catalytic converter does not create a heater circuit failure by itself. Converter faults usually relate to catalyst efficiency codes, not heater power or heater resistance.
An exhaust leak near the sensor can affect oxygen readings, but P0135 points to the heater circuit. Treat the electrical circuit as the main suspect first.
Wrong Belief 3: Clearing The Code Fixes The Problem
Clearing P0135 only turns off the light until the PCM retests the heater circuit. If the heater current, voltage, or resistance still fails the test, the code will return.
Advance Auto Parts recommends clearing the code, driving the vehicle, and seeing if P0135 returns, but it also lists wiring inspection and voltage checks as part of the repair path. :contentReference[oaicite:6]{index=6}
The best P0135 diagnosis proves the circuit condition before buying the part.
6. How To Diagnose P0135 Without Guessing
Diagnose P0135 by confirming the code, checking freeze frame data, inspecting the sensor harness, testing fuses, measuring heater resistance, and checking voltage and ground. This sequence prevents wasted parts.
Start with a scan tool. Confirm P0135 and write down any related codes, such as oxygen sensor heater low, heater high, fuel trim, coolant temperature, or other circuit faults.
- Confirm P0135 with an OBD II scanner.
- Inspect Bank 1 Sensor 1 wiring near hot exhaust.
- Check the oxygen sensor heater fuse.
- Inspect connector pins for corrosion or looseness.
- Measure heater resistance with a multimeter.
- Check heater voltage with key on.
- Check ground or PCM control continuity.
Use the vehicle service manual for exact resistance and wiring values. Heater resistance specs differ by make, model, engine, and sensor design.
What most people do not think to ask is whether another sensor shares the same fuse. If several heater codes appear at once, a shared fuse or power feed becomes more likely than multiple failed sensors.
7. When P0135 Is A Sensor Problem
P0135 is likely a sensor problem when the heater element shows open resistance, the connector is clean, power and ground are present, and the wiring passes continuity checks. In that case, replacing Bank 1 Sensor 1 makes sense.
Aged oxygen sensors fail because heat cycles, vibration, oil contamination, coolant contamination, and carbon buildup damage the internal parts. The heater element can fail before the oxygen-sensing side fully dies.
Use a direct-fit sensor when possible. Universal sensors can work, but wiring splices near exhaust heat add another failure point if the splice is weak.
Match the sensor by engine, emissions package, connector shape, and sensor location.
After replacement, clear the code and complete a normal drive cycle. The PCM needs a valid test event before it can confirm the repair.
8. When P0135 Is A Wiring Or Fuse Problem

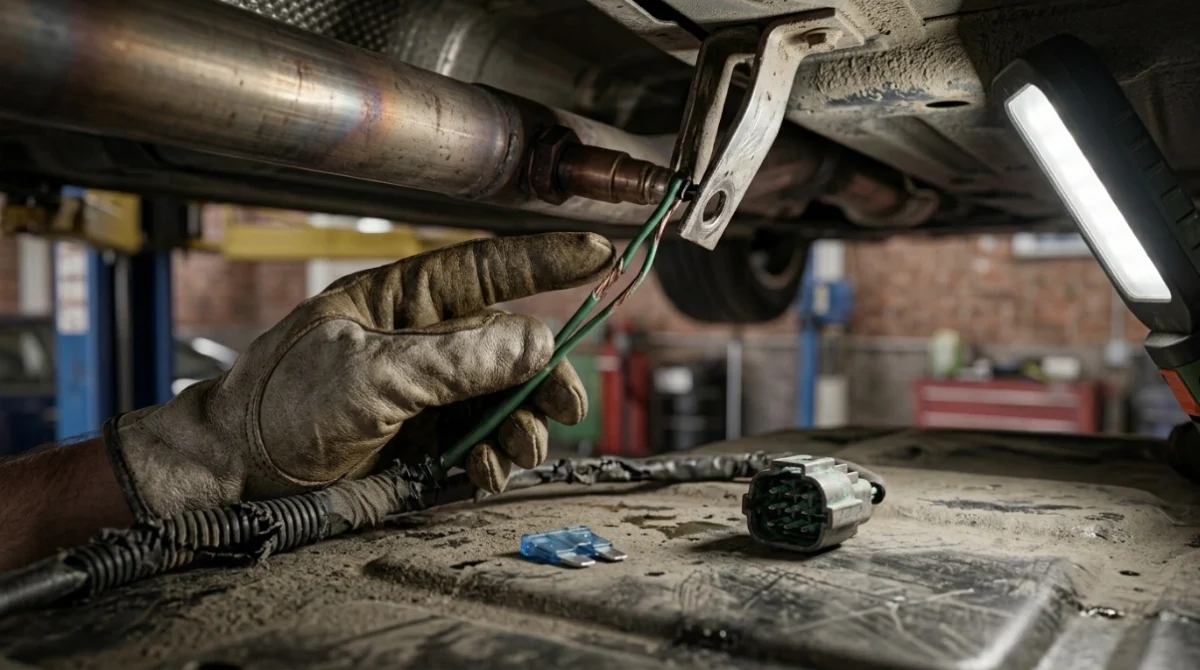

P0135 is likely a wiring or fuse problem when the sensor tests within spec, but voltage, ground, or continuity fails at the connector. Exhaust heat makes this area a common damage zone.
Look for melted insulation, stretched wiring, oil-soaked harness tape, loose pins, green corrosion, and rubbed wires near brackets. A wire can look fine from above but fail underneath the harness.
Fuse checks matter because some vehicles feed more than one oxygen sensor heater from the same fuse. A shorted heater wire can blow the fuse, and a new sensor will not work until the short and fuse are fixed.
If the fuse blows again right after replacement, stop replacing fuses. Find the short to ground before the circuit damages more parts.
9. Can You Drive With P0135?
You can drive a short distance with P0135 if the engine runs normally, but you should not ignore the code. The heater fault can increase fuel use and emissions during startup.
The larger risk comes from repeated rich cold starts. Rich operation can foul the oxygen sensor and load the catalytic converter with extra fuel over time.
| Situation | Best Action |
|---|---|
| Light on, engine runs smooth | Inspect and test within a few days. |
| Rough cold start or poor fuel economy | Diagnose before more driving. |
| Multiple heater codes | Check shared fuse and power feed first. |
| Code returns after new sensor | Test wiring, connector, ground, and PCM control. |
The safest choice is simple. Treat P0135 as a near-term repair, not an emergency unless the engine runs poorly.
10. Best Fix For P0135 Based On Your Situation
The best fix for P0135 depends on the test result, not the code name. A failed heater element needs a sensor. A failed power feed needs wiring repair.
If you are in situation A, where the heater resistance is open, replace Bank 1 Sensor 1. If you are in situation B, where the sensor tests good but voltage is missing, trace the fuse, relay, and power wire.
If you are in situation C, where P0135 returns after replacing the sensor, inspect the connector and harness. Then test the PCM control side only after power, ground, fuse, and resistance pass.
- Sensor failed: replace Bank 1 Sensor 1.
- Fuse failed: find the short before replacing the fuse again.
- Connector failed: clean or replace the damaged pigtail.
- Harness failed: repair heat-damaged wiring correctly.
- PCM control failed: confirm all circuit tests first.
For official OBD background, see the Oregon DEQ explanation of onboard diagnostics, the California OBD II exhaust gas sensor monitoring rule, and the NYVIP oxygen sensor heater monitor guide. These sources support why heater monitoring exists and how OBD systems watch heater current. :contentReference[oaicite:7]{index=7}
Once you know the failed part of the circuit, the repair becomes direct.
P0135 causes come from the Bank 1 Sensor 1 heater circuit, so test the heater, wiring, fuse, connector, and ground before replacing parts.
As vehicles age, heat-damaged wiring and corroded connectors will create more repeat oxygen sensor heater faults.
Take two minutes now to inspect the Bank 1 Sensor 1 connector and wiring near the exhaust.
Frequently Asked Questions
Can a bad fuse cause P0135?
Yes, a bad or blown heater fuse can cause P0135 if that fuse supplies power to the Bank 1 Sensor 1 heater. If the fuse blows again, the circuit has a short that needs repair before another fuse goes in.
Can P0135 go away by itself?
P0135 can disappear if the fault is intermittent, but the cause remains until the circuit passes repeated tests. Loose connector pins, moisture, or damaged wiring can make the light turn off and return later.
Does P0135 mean upstream or downstream oxygen sensor?
P0135 points to the upstream oxygen sensor on Bank 1, also called Sensor 1. This sensor sits before the catalytic converter and helps the engine control fuel mixture after it warms up.
Will P0135 fail an emissions test?
Yes, P0135 can fail an emissions test because the check engine light and stored OBD fault show an emission system problem. The oxygen sensor heater monitor can also remain incomplete after codes are cleared.
How much does fixing P0135 cost?
P0135 repair cost depends on the failed part. A sensor replacement costs more than a fuse or connector cleaning, while harness repair costs more when wires are melted near the exhaust.
